TopMax Kit RapidMounting EVO! – INTERMEDIATE 9mm bushings – TMKITM9

Patented TopMax Elaborazioni system. The RapidMounting EVO! Kit – INTERMEDIATE is designed for the extraction/assembly
of the bushings in the GearBox plates, for the boring of the bushings seats and to change the size of the 9mm bushings seat. As
the RapidMounting EVO! Kit was designed on our specific dimensions, we strongly suggest the use of our bushings sets after any
kind of operation made with the RapidMounting EVO! kit.

Please NOTE: The sharpening of both setting bore cutter and reaming cutter for counterblock may be reduced depending on the
composition (materials and additives) of the GearBox of different brands. To maximize the working life of the cutters, we recommend
to watch all the tutorials relating to the use/maintenance of the Kit and to not force the cut, if during the operation, you realize that too
much force is needed to complete the job.

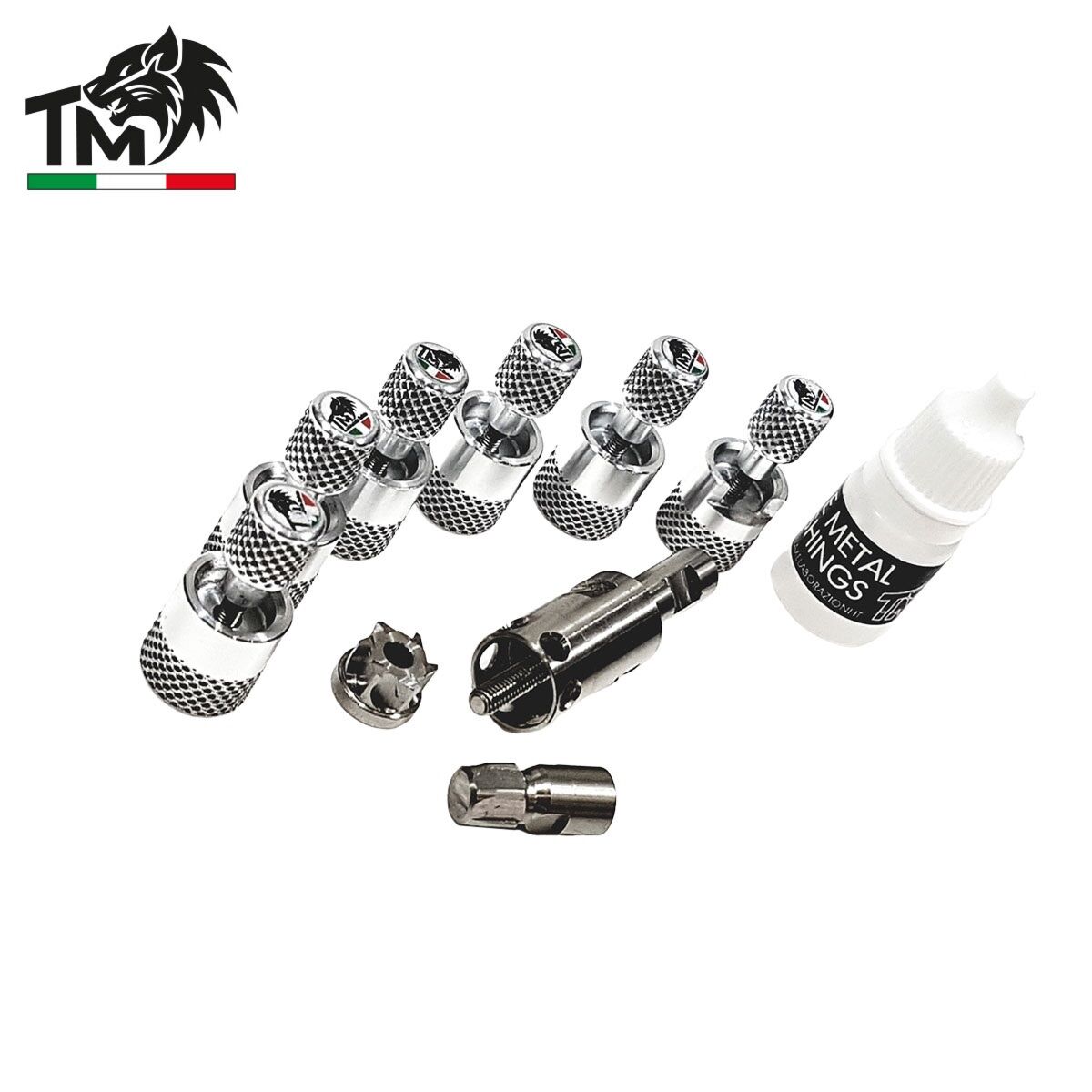

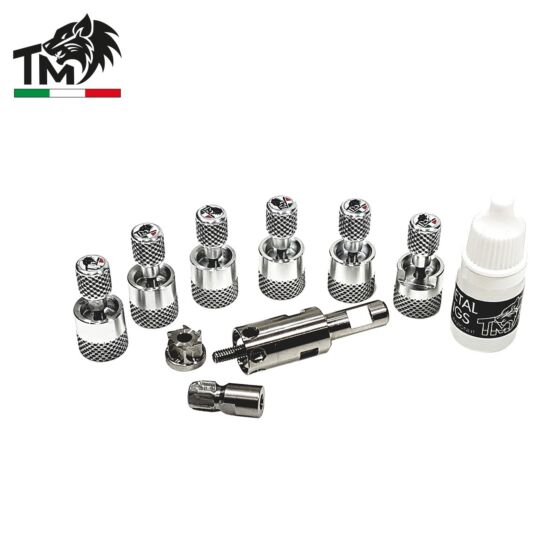

The RapidMouning EVO! – INTERMEDIATE 9mm bushings Kit consists of:
- n°6 complete knobs for the extraction/assembly of the bushings (5 standard knob and 1 knob dedicated for the bushing under the
selector plate),
- n°6 1,00mm shimmings for the knobs,
- n°1 specific glue dispenser for fixing the bushings (we recommend storing the bottle at temperatures between 5°C and 12°C),
- n°1 cutter holder insert,
- n°1 9mm reaming cutter for counterblock bushings,
- n°1 9mm setting bore cutter for bushings.

The complete reamers can be mounted on the manual handle of the RapidMouning EVO! Kit, on pillar drills and on non-professional
electric drills, but it’s always recommended to not exceed 280 RPM to carry out a safe operation. To avoid excessive overheating, we
also recommend applying a few drops of mechanical oil on the affected part and constantly clearing the seat from processing residues.
The use of the Kit requires a bit of manual skills, so we recommend to view the tutorials you can find on our YouTube page.
