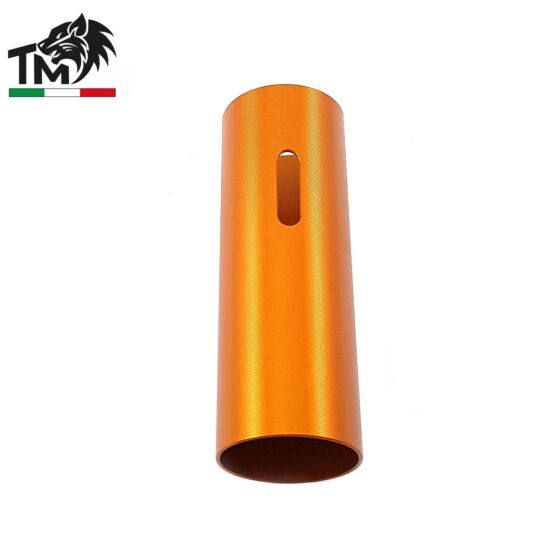

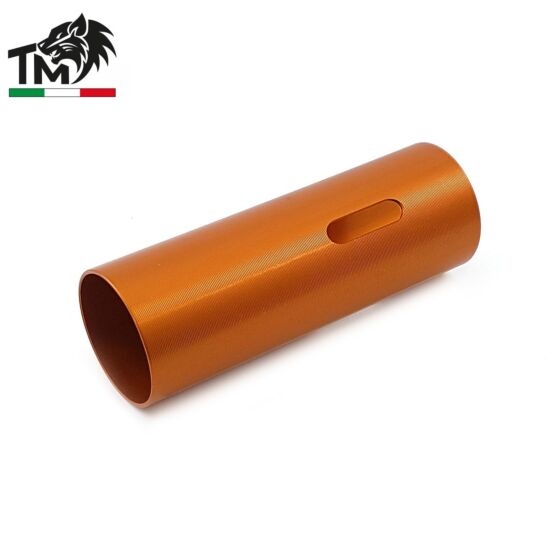

TopMax ERGAL ORANGE cylinder C-39.50mm – TMCL395A

Born from the collaboration between TopMax Elaborazioni and the Merlino Custom Lab
(for dimensional specifications and designs), the UNITUS Department DEIM Engineering
and the UNITUS RACING TEAM (for the study of air volumes and moving masses), the
cylinders of the TopMax Elaborazioni are Made in Italy and have been studied considering
the run of the sector gear at 16 teeth.

The ERGAL 7075 cylinder line of the TopMax Elaborazioni is entirely made from full bars CNC
processed, and this allows you to better manage the dilation/shrinking phases (due to overheating
by rubbing the O-RING on the walls of the cylinder itself) of the finished product when working in
contact with the O-RING during the shooting cycles. The ERGAL's dilation/shrinking memory effect
allows the O-RING of the piston head to work on effortlessly unnecessary even at high R.O.Fs.,
returning greater reliability and consistency even in shooting.

Technical specifications of the cylinder C-39.50mm with 3 holes:
Cylinder length – 72.20mm,
Outer diameter of the cylinder – 25.50mm,
Internal diameter of the cylinder – 23.85mm.
ANODIZING and BRIGHTENING internal finishing, are made to ensure the decrease in friction
between the contact surfaces, increased smoothness and resistance to rubbing of the O-RING
during use. The TopMax Elaborazioni cylinders are compatible with the majority of GearBoxs on
the market. The TopMax Elaborazioni recommends the use of the ORANGE C-39.50mm cylinder
in combination with inner barrel between 151.00mm and 200.00mm in length.
The installation of the cylinders is simple, but pay attention in case of configurations that don’t involve
sector gear with 16 teeth (varying the air volumes inside the cylinder will be necessary to use more or
less powerful springs).
